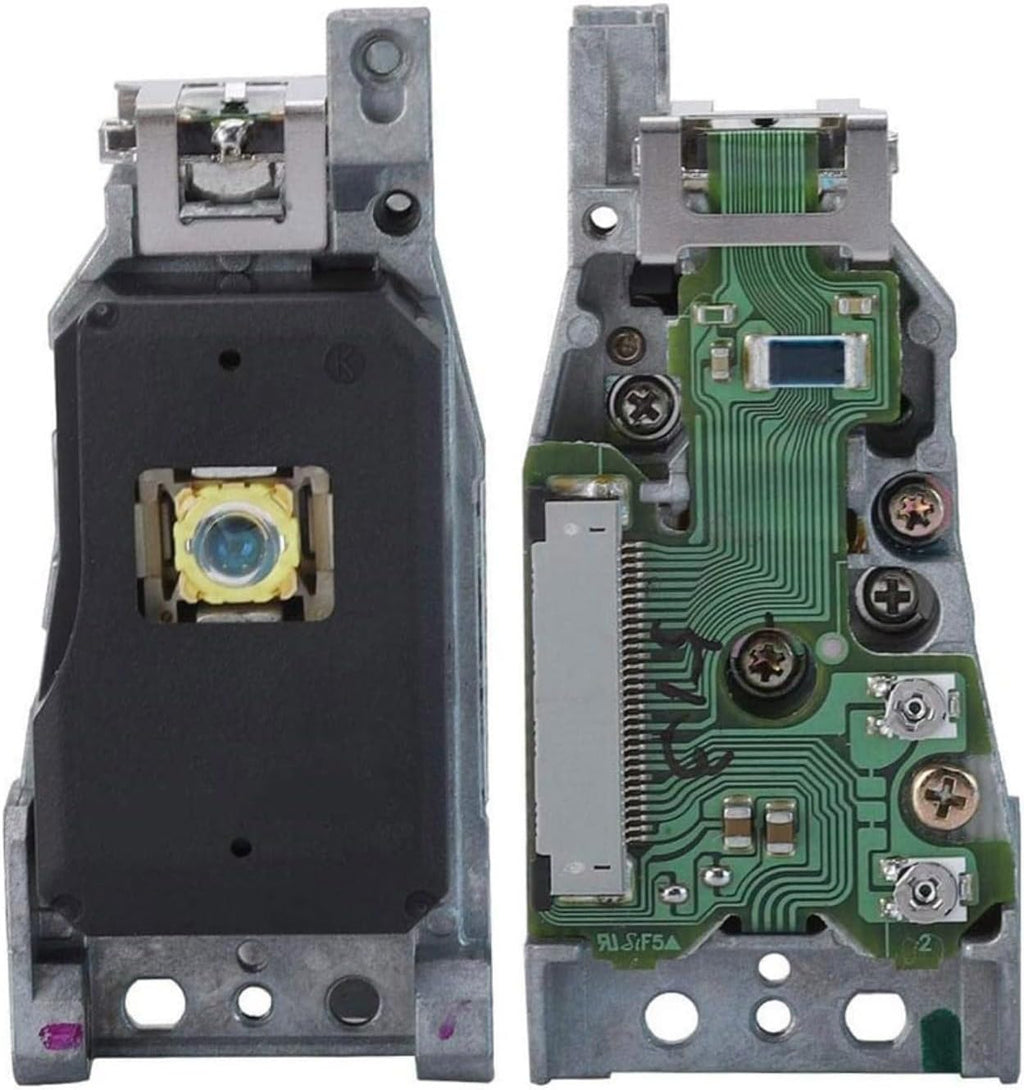

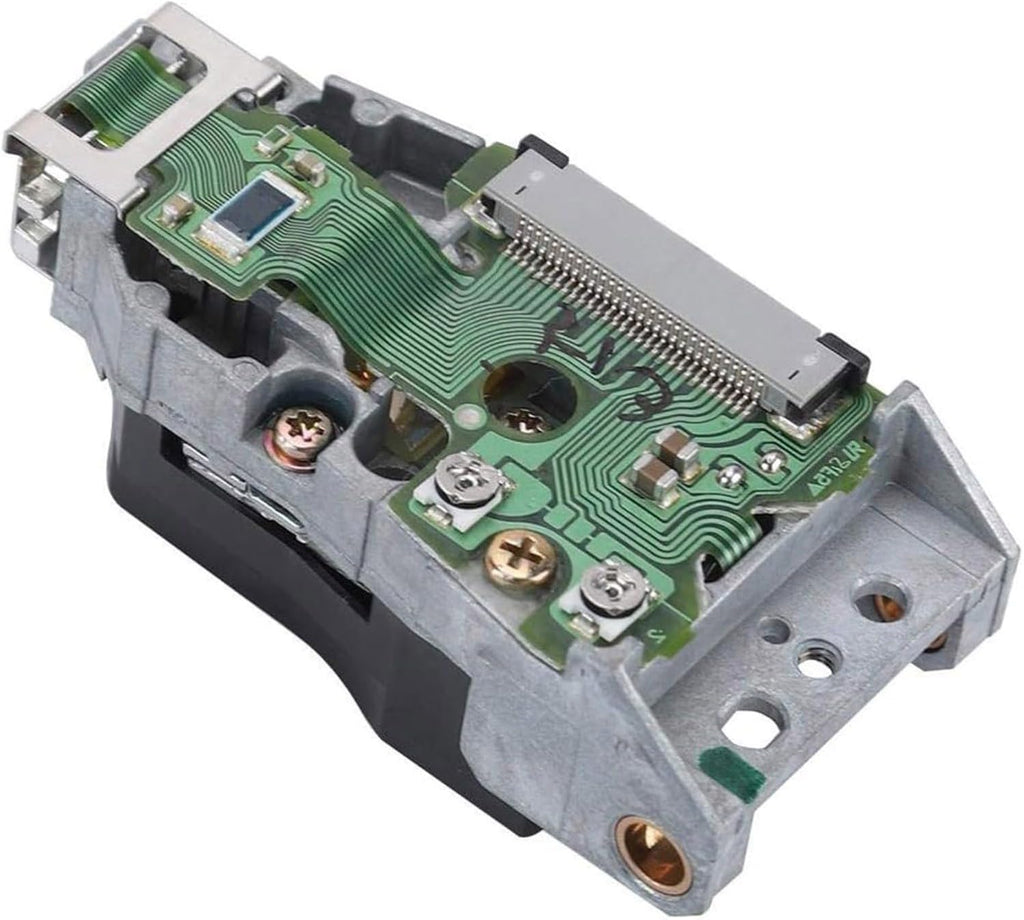

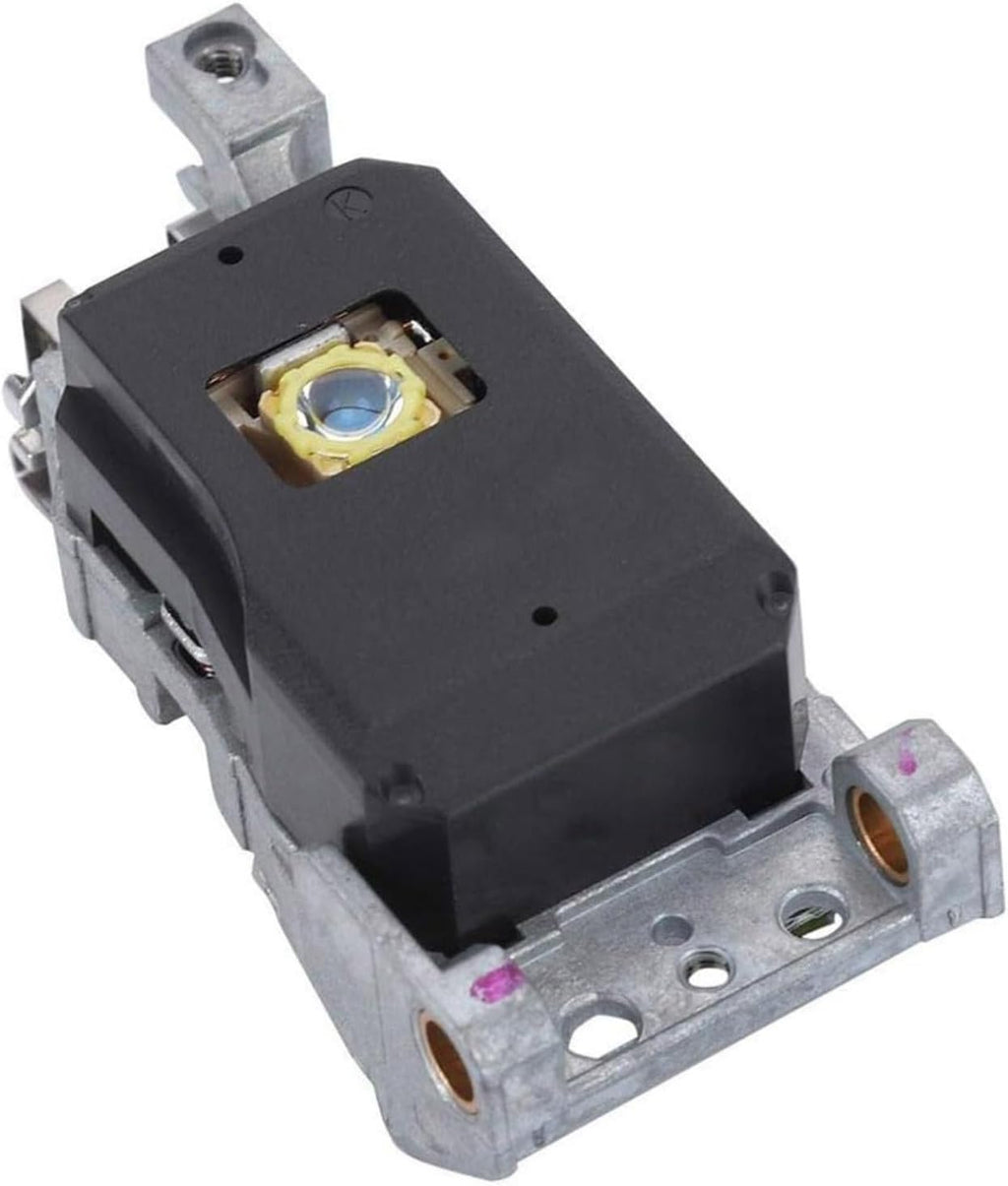

KHS-400B Replacement Laser Lens for PS2 Fat 30000/35000/39000 Series

€29,99 EUR

The KHS-400B laser lens is the replacement optical block for the DVD drive of PlayStation 2 Fat SCPH-30000, 35000 and 39000 series consoles (versions v1 to v8). New replacement part, ready to fit: it restores DVD and CD game reading without replacing the whole drive.

When to replace it

The PS2 shows "Disc Read Error" or a brown/red screen
It reads CDs but not DVDs (or vice versa)
The disc spins but the game doesn't start or freezes while loading
Intermittent reading: it only works after several attempts
Unusual noise from the drive "searching" for the disc without finding it

Compatibility (KHS-400B)

✅ PS2 Fat SCPH-30000 / 30001 / 30002 / 30003 / 30004
✅ PS2 Fat SCPH-35000 / 35001 / 35002 / 35003 / 35004
✅ PS2 Fat SCPH-39000 / 39001 / 39002 / 39003 / 39004
❌ PS2 Fat SCPH-50000 → use the KHS-400C lens
❌ PS2 Slim SCPH-70000 / 75000 → use the PVR-802W lens
❌ PS2 Slim SCPH-77000 / 79000 / 90000 → use the TDP-082W lens

The model code is printed on the rear label of the console: if it starts with SCPH-300xx, SCPH-350xx or SCPH-390xx, this is the right lens.

Before replacing the lens

Check that the disc spins properly and try cleaning the lens with a cotton bud and isopropyl alcohol. If the problem persists, replacing the optical block is the definitive fix.
